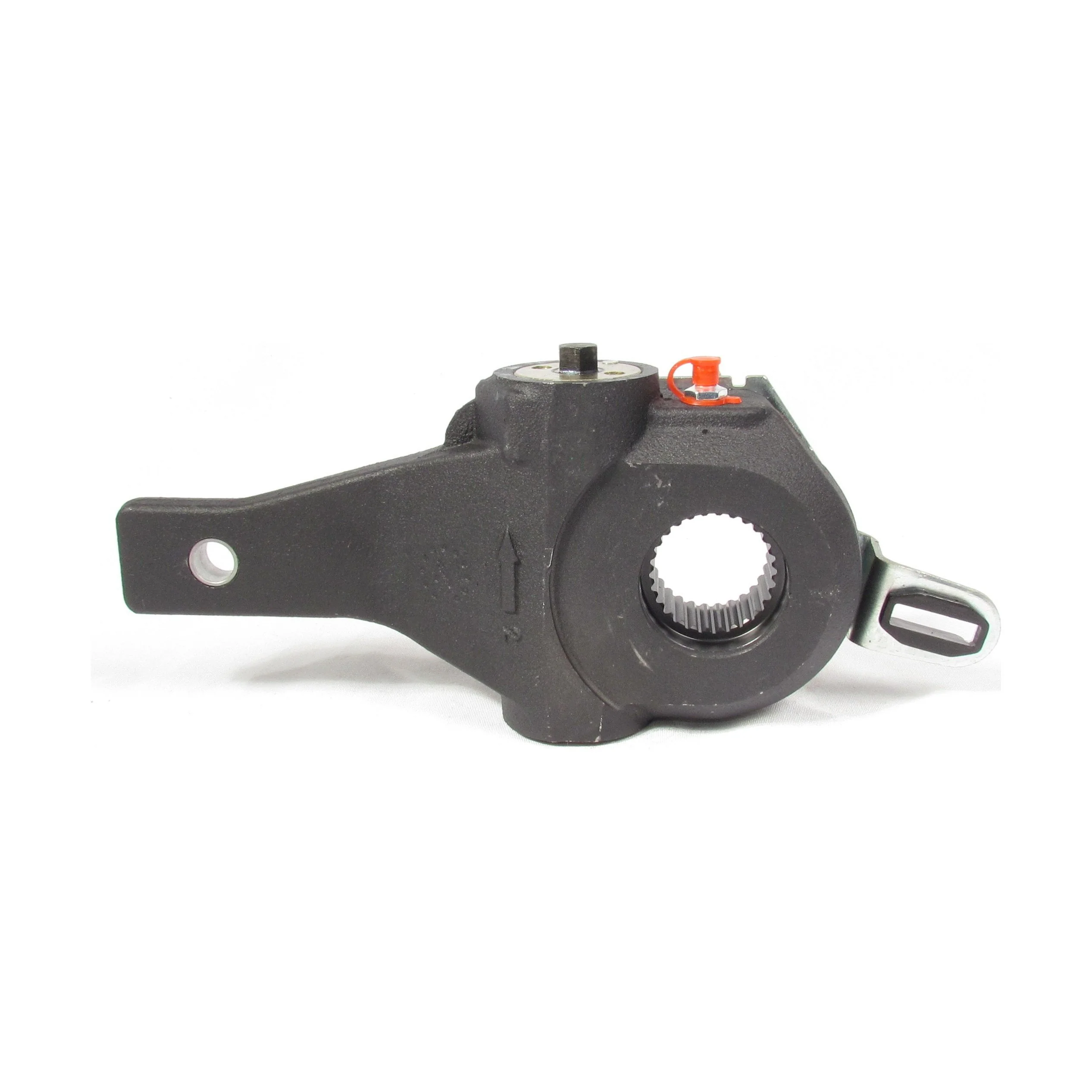

Fortpro Automatic Slack Adjuster 1 1/2" Diameter, 28 Teeth, 6" Arm, Haldex Style Replaces 400-10212 | F224932

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Slack Adjuster
• OEM Reference: 40010212
• Part Type: Automatic Slack Adjuster
• Style: Haldex
• Slack Spline Diameter: 1-1/2 in.
• Slack Spline Count: 28
• Arm Length 1: 6 in.
• Arm Length 2: N/A
• Arm Length 3: N/A
• Model: AA1
• Clevis Type: Unclevised
• Clevis Thread Diameter: N/A
• Maximum Torque Rating: Less than 15 foot pounds
• Arm Offset: No Offset
• Arm Bushing(s)Inside Diameter (ID): Arm Hole Diameter1/2 in.
• Inclination Angle (Body Angle): 0 degrees
• Maximum Operating Temperature: 158 °F (70 °C)
• Minimum Operating Temperature: (-40 °F) (-40 °C)
• Material: Alloy Steel
• Type of Operation: Tension Adjuster - Torque
• Chamber Sizes: T-30 Standard Stroke or T-16 / T-24 Long Stroke Chamber
• Grease Fitting Location: 180 º
• Anchor Bracket Style: Plate & Flat Stud
• Application: For 16-1/2" Brake AssemblyTrailer Axle Application.

CrossReference:

• Automann: 1332841
• Bendix: 28931213
• Dayton Parts: 5662
• Euclid: E-6942, E-6918A
• Haldex: 400-10212
• Meritor: R806013A, M807013
• Stemco: MK42106S
