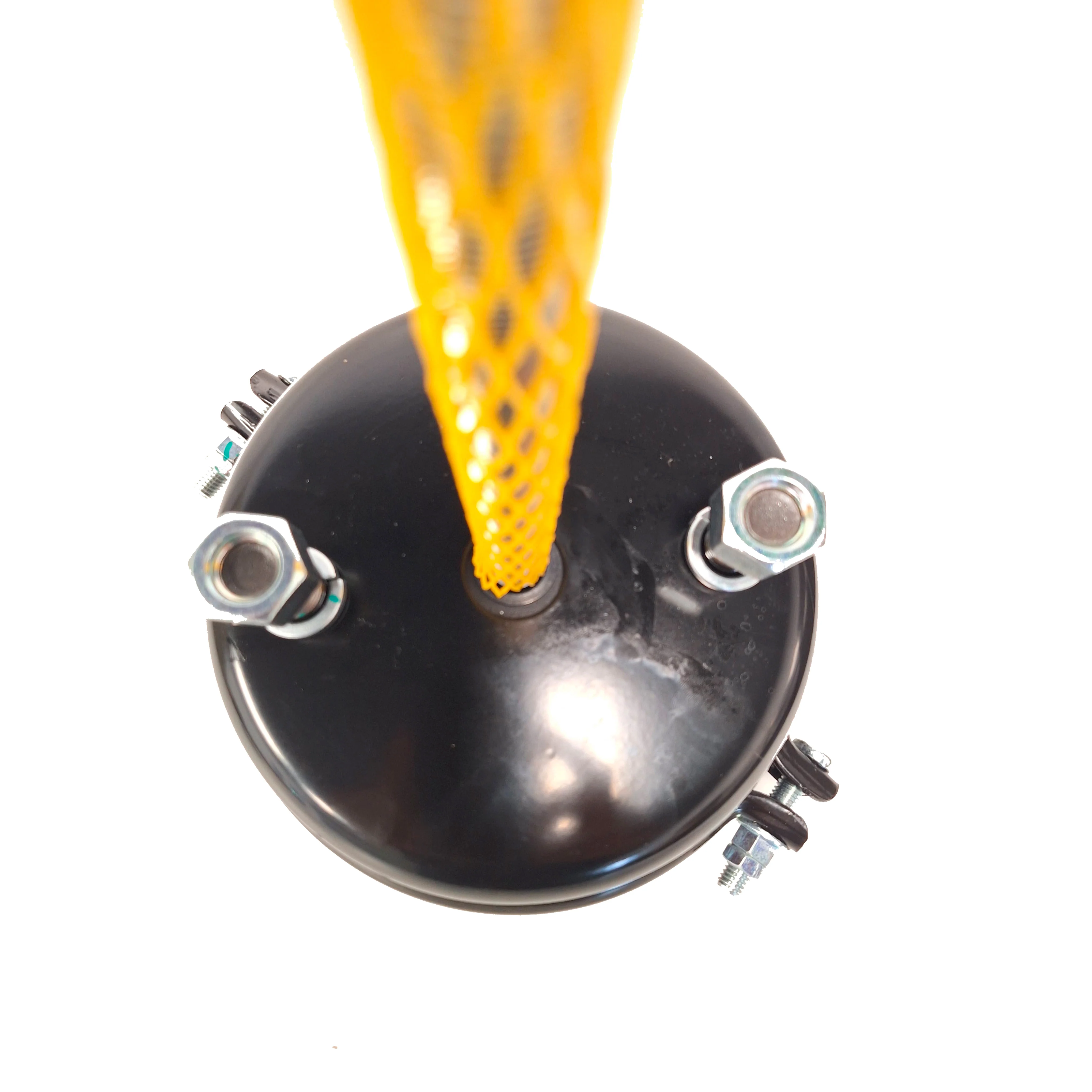

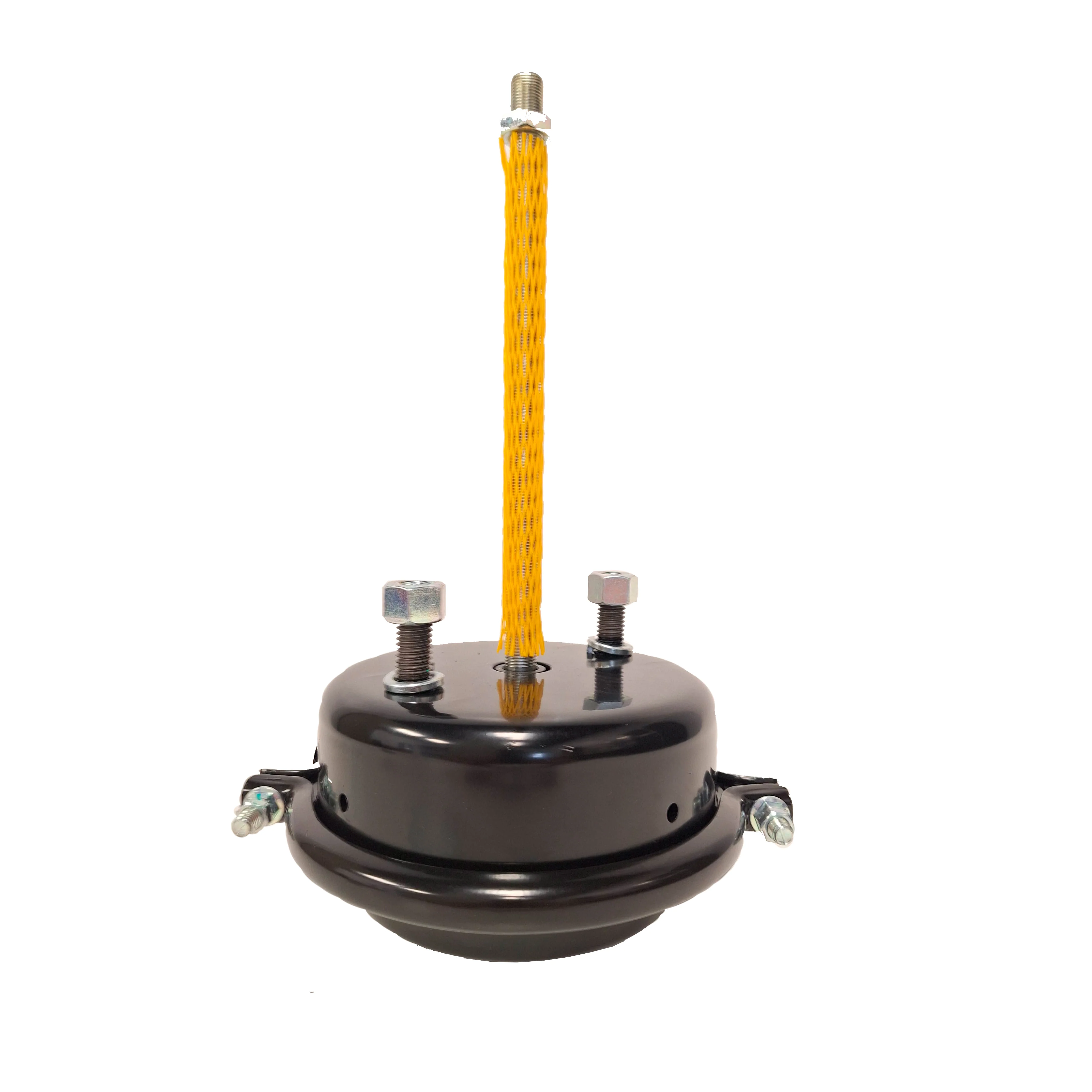

Fortpro Type 30 Brake Chamber - Threaded, Standard Stroke, Serviceable | F224728

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Brake Chambers
• Part Type: Air Brake Chamber
• OEM Reference: 288813
• Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
• Chamber Type: Service Brake Chamber
• Model: Type 30, T30, T-30, 30
• Stroke: Standard Stroke
• Stroke Lenght: 2.50 in.
• Outside Diameter (O.D.): 8 3/16"
• Brake Type Support: Drum
• Serviceability: Serviceable
• Push Rod Thread: 5/8-18 UNF-2A
• Push Rod Length: 10 in.
• Service Port: 3/8-18 NPTF
• Emergency/Release Port: N/A
• Port Angle: 90 °
• Clevis Included: Included
• Clevis Mounting: Threaded
• Maximum Pressure: 150 PSI
• Mounting Bolt Thread: 5/8-11 UNF-2A
• Mounting Bolt Length: 1.55 in.
• Brake System Compatibility: S-Cam
• Chamber Style: Single Diaphragm
• Service Chamber Joint Type: Single Clamp Band

CrossReference:

• Automann: 179.SC30
• Bendix: 288813, 288813N
• BWP: M459
• Euclid: E-30S, E-BC30S
• Haldex: SC30, SC30S
• Meritor: R870030
• PAI: HSC-0230-100
• Velvac: 30021
