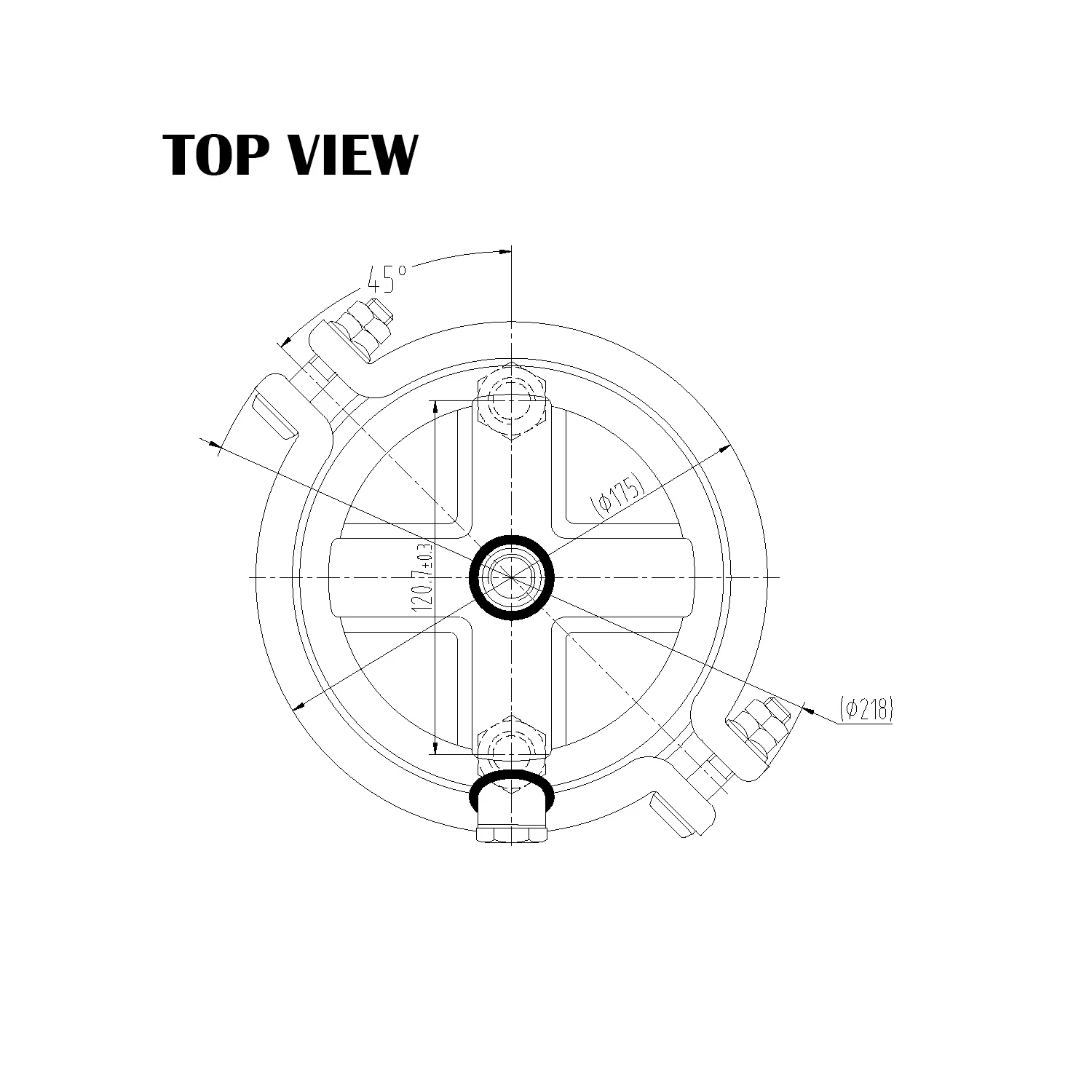

Fortpro Type 20 Brake Chamber - Standard Stroke, Serviceable | F224726

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Brake Chambers
• OEM Reference: 288803
• Part Type: Air Brake Chamber
• Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
• Chamber Type: Service Brake Chamber
• Model: T20, T-20, 20
• Stroke: Standard Stroke
• Stroke Lenght: 2.25 in.
• Outside Diameter (O.D.): 7 in.
• Brake Type Support: Drum
• Serviceability: Serviceable
• Push Rod Thread: 5/8-18 UNF-2A
• Push Rod Length: 10.50 in.
• Service Port: 3/8-18 NPTF
• Emergency/Release Port: N/A
• Port Angle: 90 °
• Clevis Included: Included
• Clevis Mounting: Threaded
• Maximum Pressure: 150 PSI
• Mounting Bolt Thread: 5/8-18 UNF-2A
• Mounting Bolt Length: 1.44 in. (36.6 MM)
• Brake System Compatibility: S-Cam
• Chamber Style: Single Diaphragm
• Service Chamber Joint Type: Single Clamp Band

CrossReference:

• Automann: 179.SC20
• Bendix: 288803
• Euclid: E-20S, E-BC20S
• Flagg: 20S
• Haldex: SC20, KN36200
• Meritor: R870020
• Velvac: 30017
