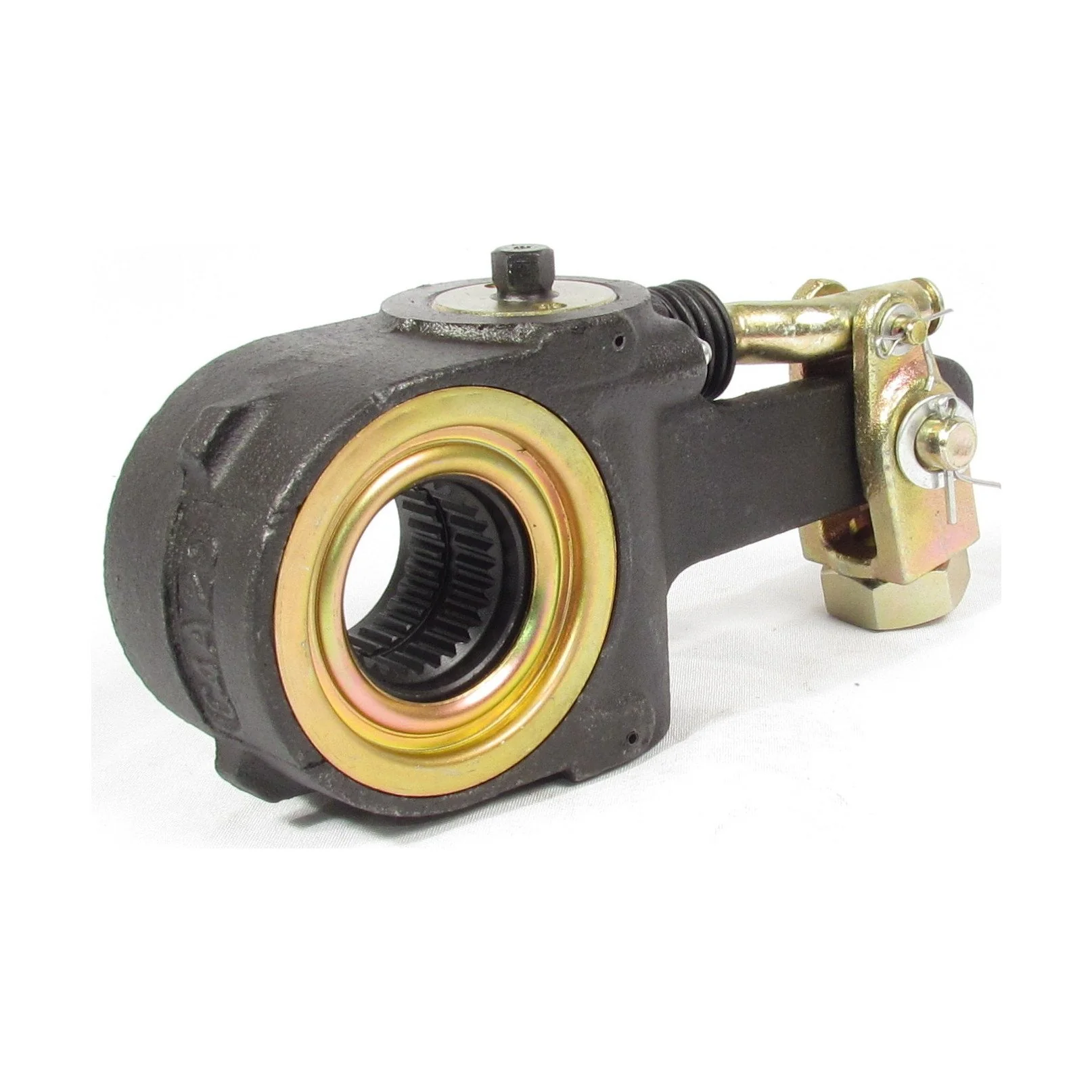

Fortpro Automatic Slack Adjuster 1 1/2" Diameter, 28 Teeth, 5 1/2" Arm, Gunite Style Replaces AS1140 | F225063

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Slack Adjuster
• OEM Reference: AS1140
• Part Type: Automatic Slack Adjuster
• Style: Gunite
• Slack Spline Diameter: 1-1/2 in.
• Slack Spline Count: 28
• Arm Length 1: 5-1/2 in.
• Arm Length 2: N/A
• Arm Length 3: N/A
• Clevis Type: Straight
• Clevis Thread Diameter: 5/8-18 UNF-2B
• Maximum Torque Rating: 20.000 In./Lbs.
• Arm Offset: No Offset
• Arm Bushing(s)Inside Diameter (ID): N/A
• Inclination Angle (Body Angle): 0 °
• Maximum Operating Temperature: 158 °F (70 °C)
• Minimum Operating Temperature: (-40 °F) (-40 °C)
• Material: Alloy Steel
• Type of Operation: Tension Adjuster - Torque
• Chamber Sizes: T-30 Standard Stroke or T-16 / T-24 Long Stroke Chamber
• Application: Steer / Drive Axle

CrossReference:

• Automann: 1382810
• Bendix: 065174, K043197
• Euclid: E-11401
• Gunite: AS1140
• Haldex: 40010141
• Meritor: R801072, R801073
• Stemco: MK42100S
