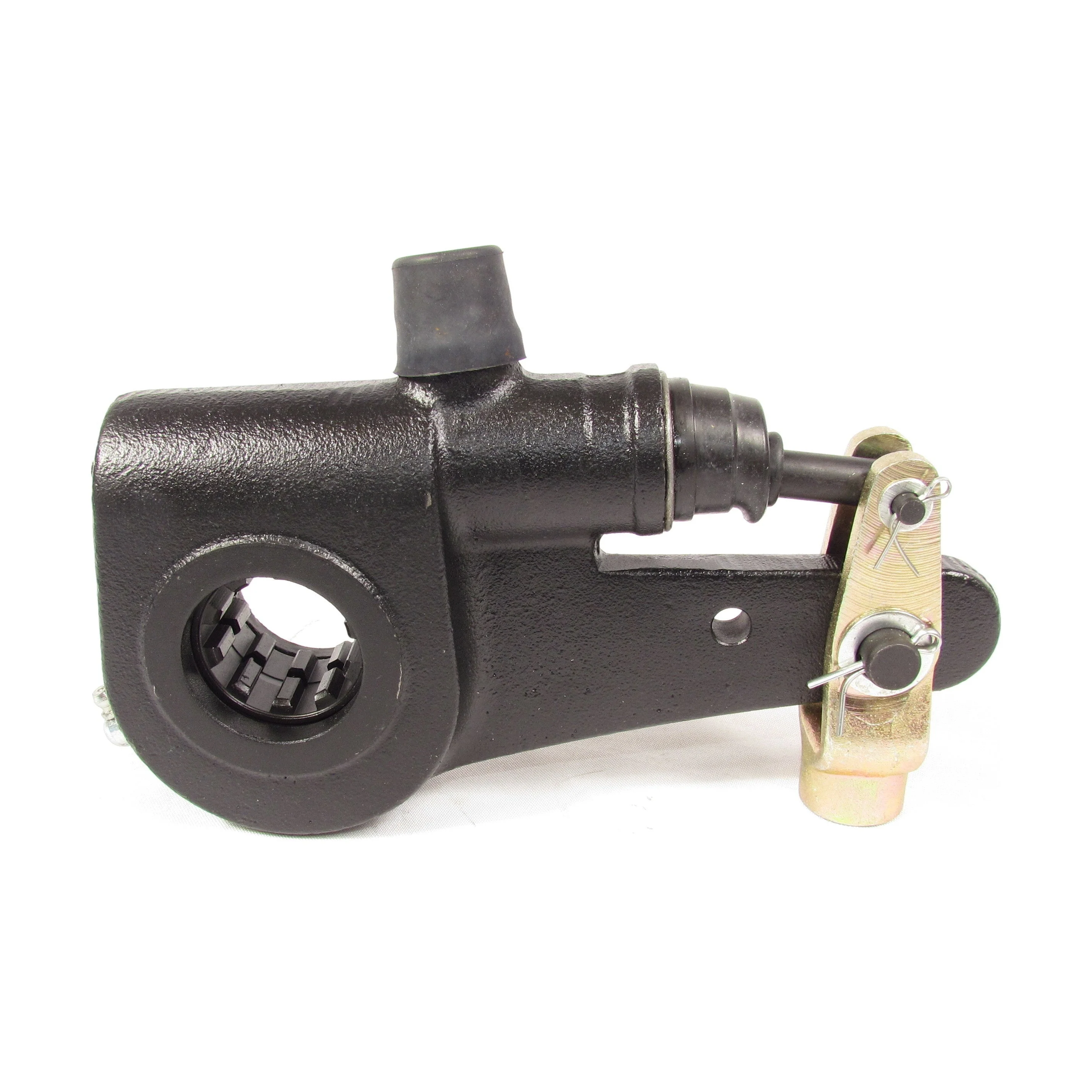

Fortpro Automatic Slack Adjuster 1 1/2" Diameter, 28 Teeth, 6" Arm, Meritor Style Replacement for R801074 | F225054

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Slack Adjuster
• OEM Reference: R801074
• Part Type: Automatic Slack Adjuster
• Style: Meritor
• Slack Spline Diameter: 1-1/2 in.
• Slack Spline Count: 28
• Arm Length 1: 6 in.
• Arm Length 2: N/A
• Arm Length 3: N/A
• Model: Automatic
• Clevis Type: Straight
• Clevis Thread Diameter: 5/8-18 UNF-2B
• Maximum Torque Rating: More than 45 In./Lbs.
• Arm Offset: No Offset
• Arm Bushing(s)Inside Diameter (ID): N/A
• Inclination Angle (Body Angle): 0 °
• Maximum Operating Temperature: 158 °F (70 °C)
• Minimum Operating Temperature: (-40 °F) (-40 °C)
• Material: Alloy Steel
• Type of Operation: Tension Adjuster - Torque
• Chamber Sizes: T-30
• Piston Color-Coded: Yellow Piston
• Application: Drum brake.

CrossReference:

• Automann: 1392830
• BWP: M4047
• Dayton Parts: 05-362
• Euclid: E-11402
• Meritor: R801074
• Stemco: MK42106S
