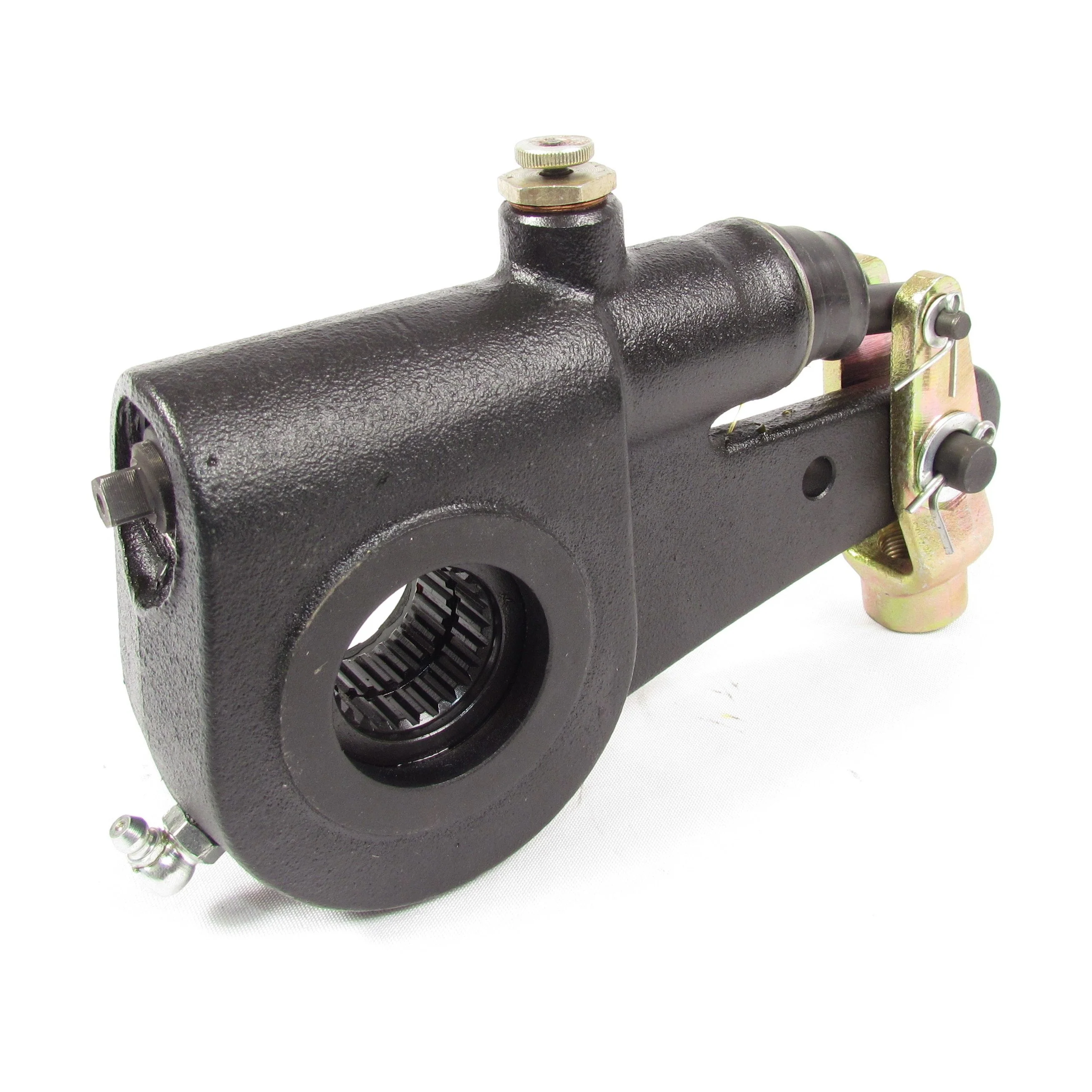

Fortpro Automatic Slack Adjuster 1 1/4" Diameter, 24 Teeth, 5 1/2" Arm, Meritor Style Replacement for R801003 | F225056

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Slack Adjuster
• OEM Reference: R801003
• Part Type: Automatic Slack Adjuster
• Style: Meritor
• Slack Spline Diameter: 1-1/4 in.
• Slack Spline Count: 24
• Arm Length 1: 5-1/2 in.
• Arm Length 2: N/A
• Arm Length 3: N/A
• Model: Automatic
• Clevis Type: Straight
• Clevis Thread Diameter: 5/8-18 UNF-2B
• Maximum Torque Rating: More than 45 In./Lbs.
• Arm Offset: No Offset
• Arm Bushing(s)Inside Diameter (ID): N/A
• Inclination Angle (Body Angle): 0 °
• Maximum Operating Temperature: 158 °F (70 °C)
• Minimum Operating Temperature: (-40 °F) (-40 °C)
• Material: Alloy Steel
• Type of Operation: Tension Adjuster - Torque
• Chamber Sizes: T-16, T-20
• Piston Color-Coded: Red Piston
• Application: Drum Brake

CrossReference:

• Automann: 1392410
• Dayton Parts: 5372
• Euclid: E-11397
• Haldex: 400-10073
• Meritor: R801003
